16T304, Oxygen Sensor

Oxygen Sensor for PPM range in acidic gases.

All characteristics are based on conditions at 25°C 50% RH and 1013 hPa

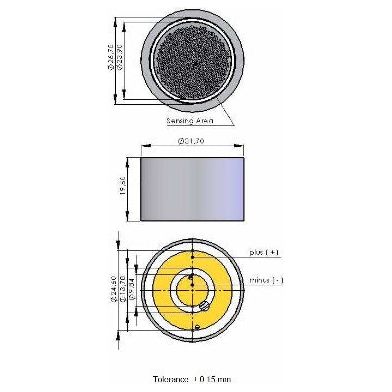

Electrical Connector: 2x slip-rings on PCB
Measurement Range: 1 to 10,000 ppm O2; 100 to 210000 ppm O2
Expected Operating Life: 2 years, depending on humidity
and O2 concentration

Output Signal
(delivery condition): 460 mA ± 120 mA @ ambient air Response Times (in operation):
< 180 s from 10,000 down to 1000 ppm
< 10 min from 1,000 down to 10 ppm
Operating Temperatures: 0°C to 50°C Pressure : 0 – 1 bar
Material in Contact with Media: PVDF, stainless steel, PTFE

Storage conditions:
Packaging: sealed nitrogen flushed coated plastic bag
Temperature Range: 0 to 45°C maximum
5 to 25°C recommended
Ambient Pressure: 600 to 1750 hPa
Humidity: up to 100% RH
